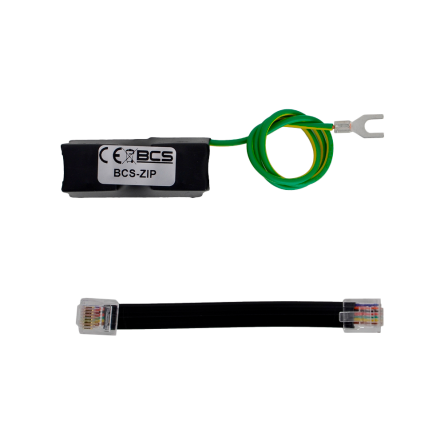

Overvoltage limiter designed for ETHERNET networks, also those working in PoE standards. The module protects devices connected to the network against temporary electric shocks. The system reduces the voltage to a safe level, reducing the number of failures. The module can be a security element for IP CCTV systems, wired ETHERNET and wireless WiFi devices, etc. The device works with all PoE power standards and with Gigabit Ethernet networks. The system also works without an earthing connection, limiting the overvoltage between the cores. Connecting the earthing system allows to limit the voltage in relation to the earth, which increases the effectiveness of protection.
BCS POWER
BCS-ZIP
23,37 € gross
100 In StockSurge protector
- Capable of operating on all types of Ethernet networks with PoE power supply
- No power supply required
- No interference with data transmission
- Protection trigger voltage (line-to-line) 8V
- PoE power line protection activation voltage: 65V
- Protection activation voltage (line–earth) 400V
- Maximum instantaneous current (line-to-line, line-to-earth) 30A
- Insulating polyethylene film
- Dimensions 20x48x17mm, weight 0.015kg
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | BCS-ZIP |
|---|
