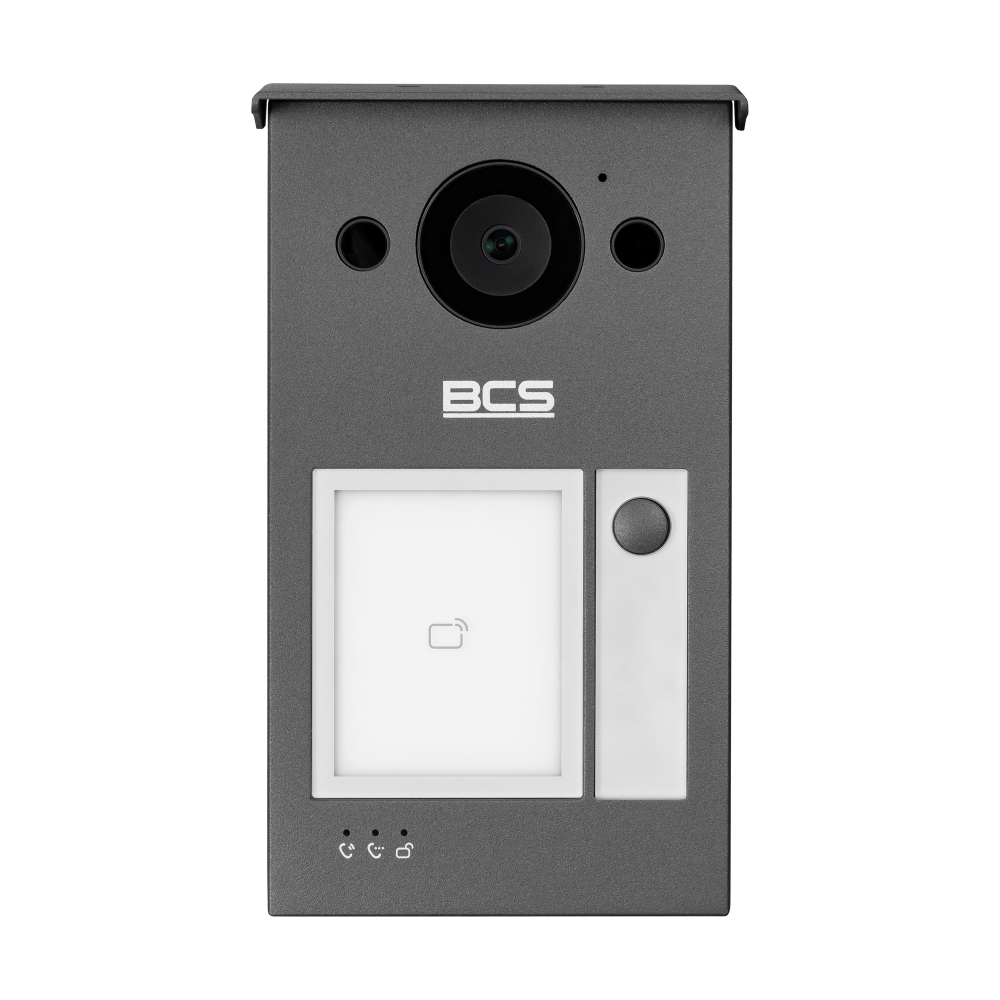

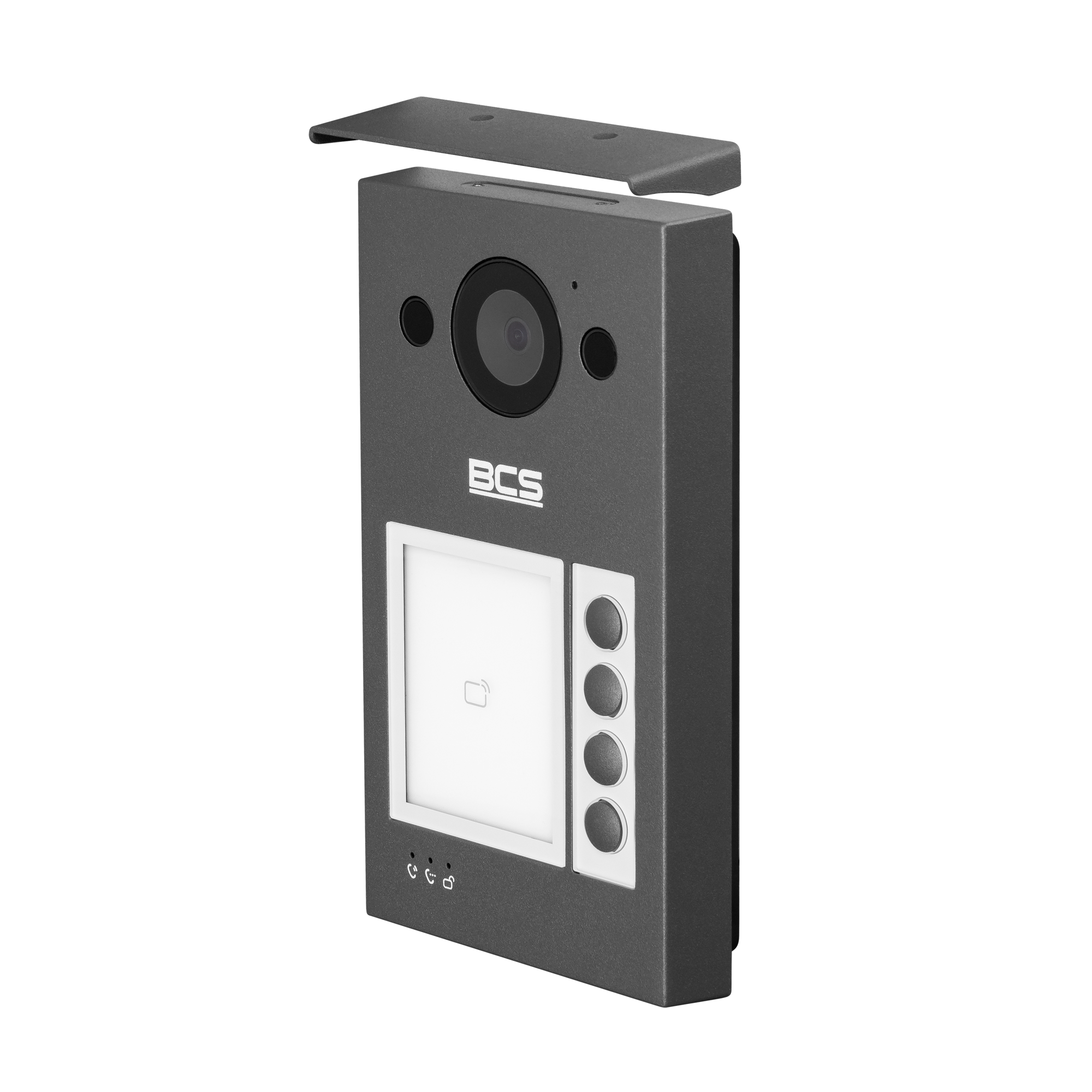

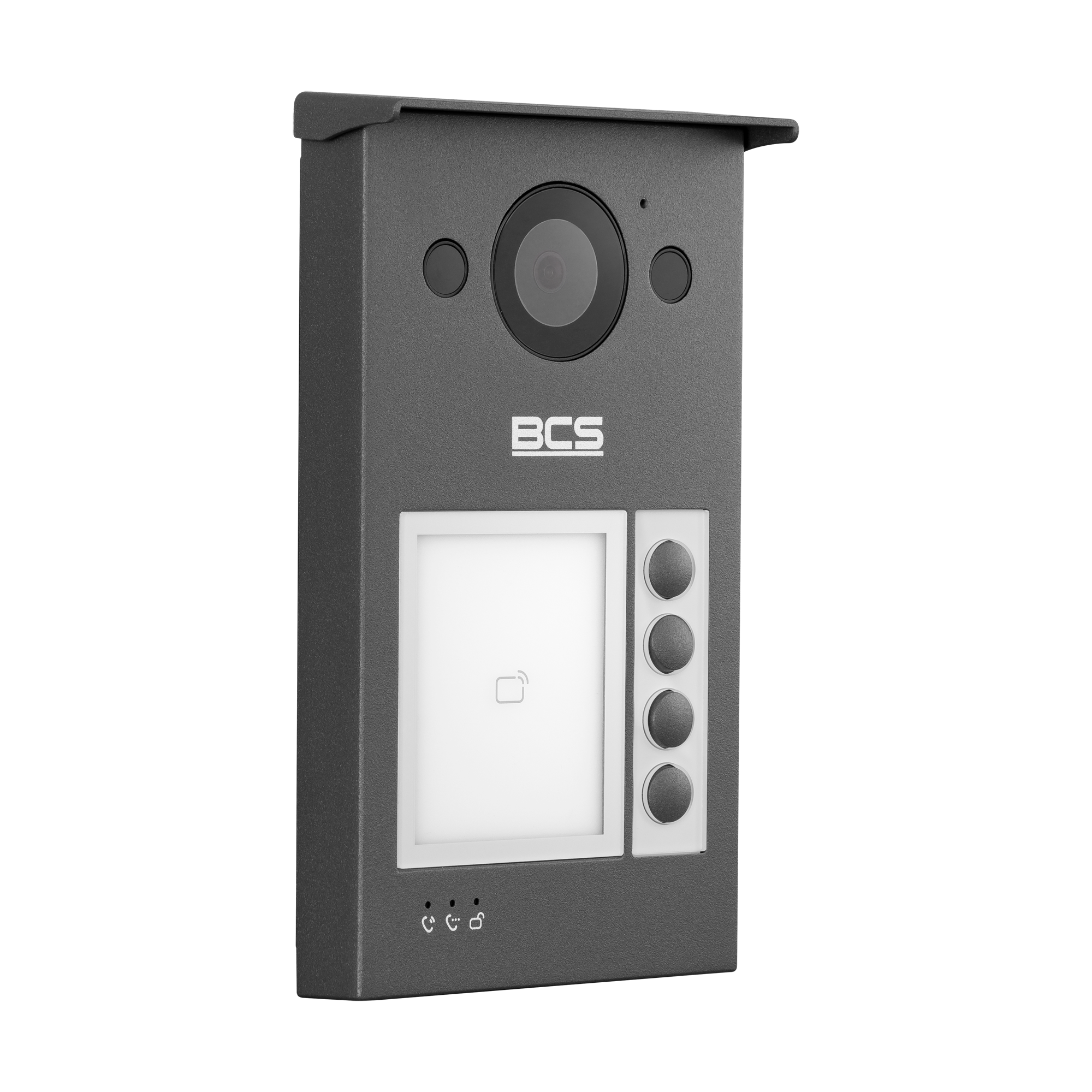

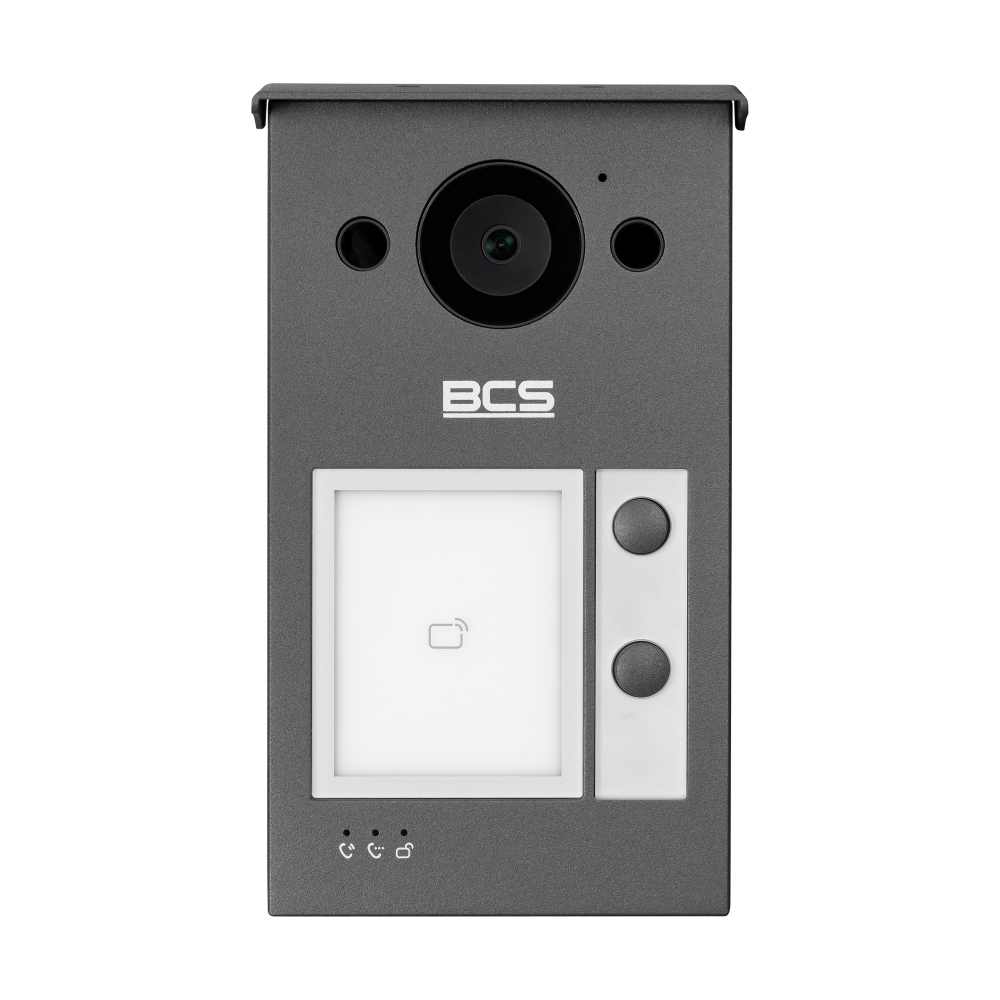

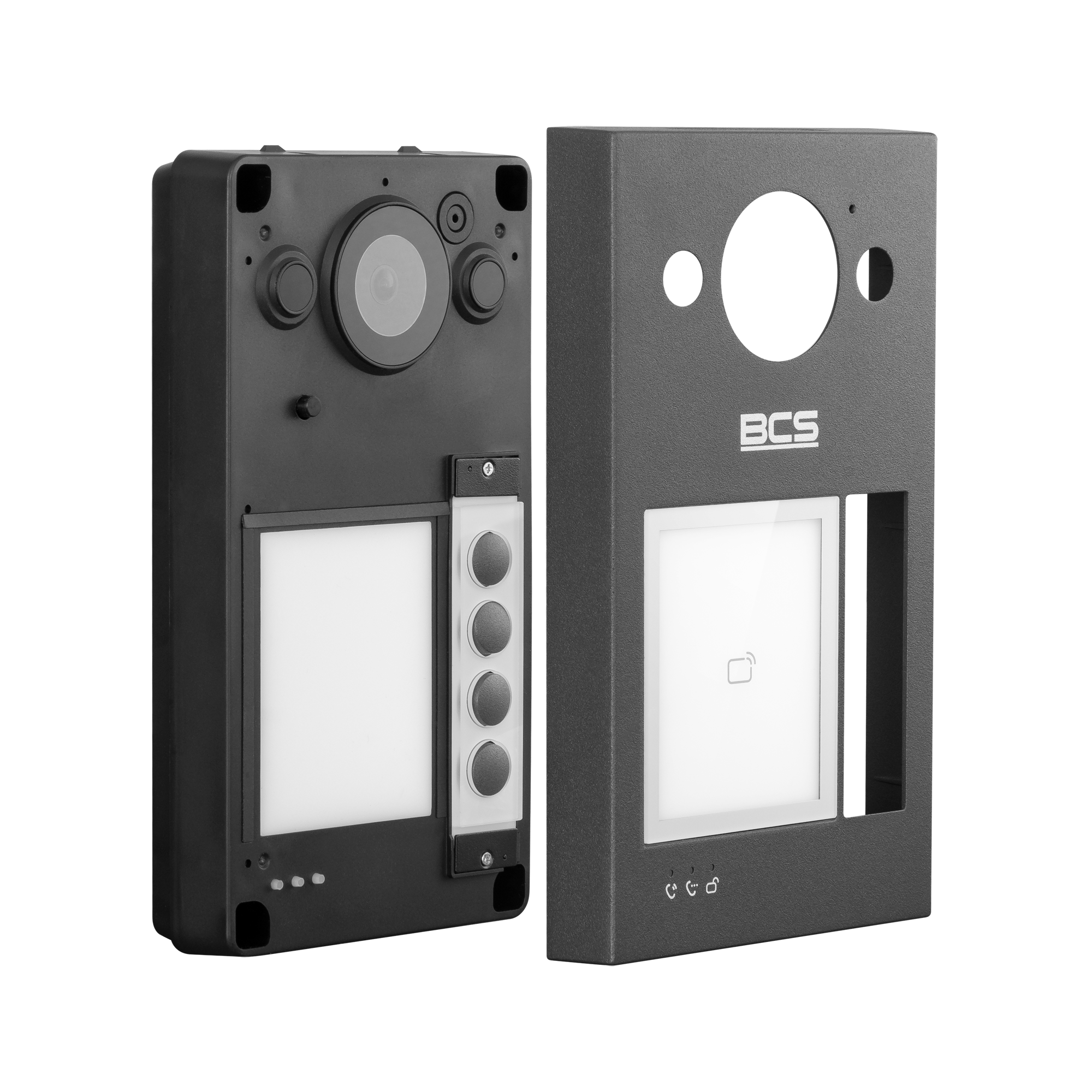

Universal IP / 2-wire outdoor panel – possibility to adjust the number of call buttons – from 1 to 4, Ethernet interface for use in IP systems, or 2-wire bus input for 2-wire systems, front housing made of aluminum alloy, IP 65, IK08 , 1 / 2.8 “HD CMOS sensor, IR illuminator, auto WDR, built-in Onvif protocol, H.264 / H.265 encoding, built-in Mifare proximity card reader, surface mounting, rain cover included, mobile application support, power supply in IP mode : 48 VDC 1A, or PoE 802.3 at / af / passive, 2-wire power supply: with an additional BCS-ADIP-II / III adapter built-in relay output, support for an additional BCS-MODKD2 / MODKD-III relay.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

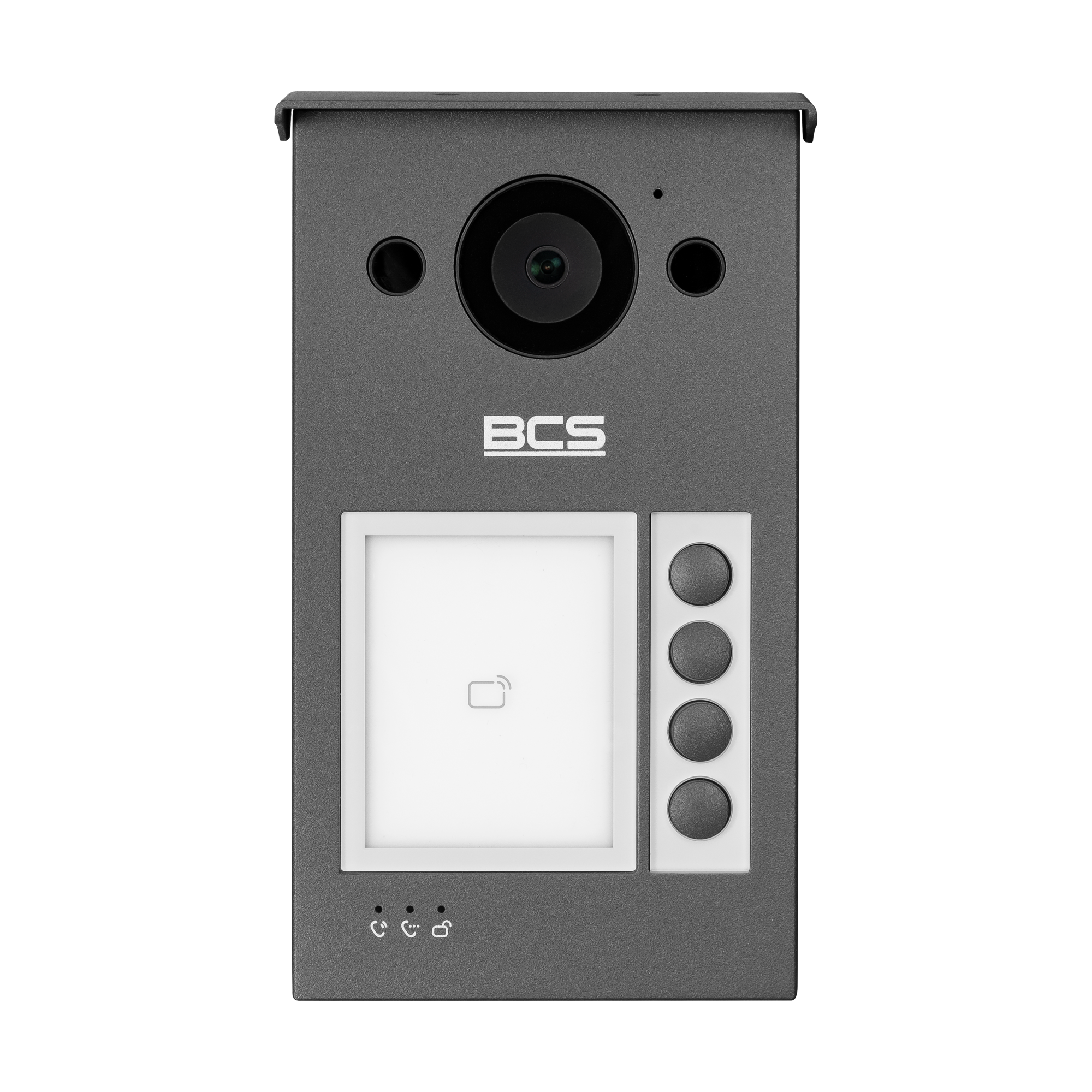

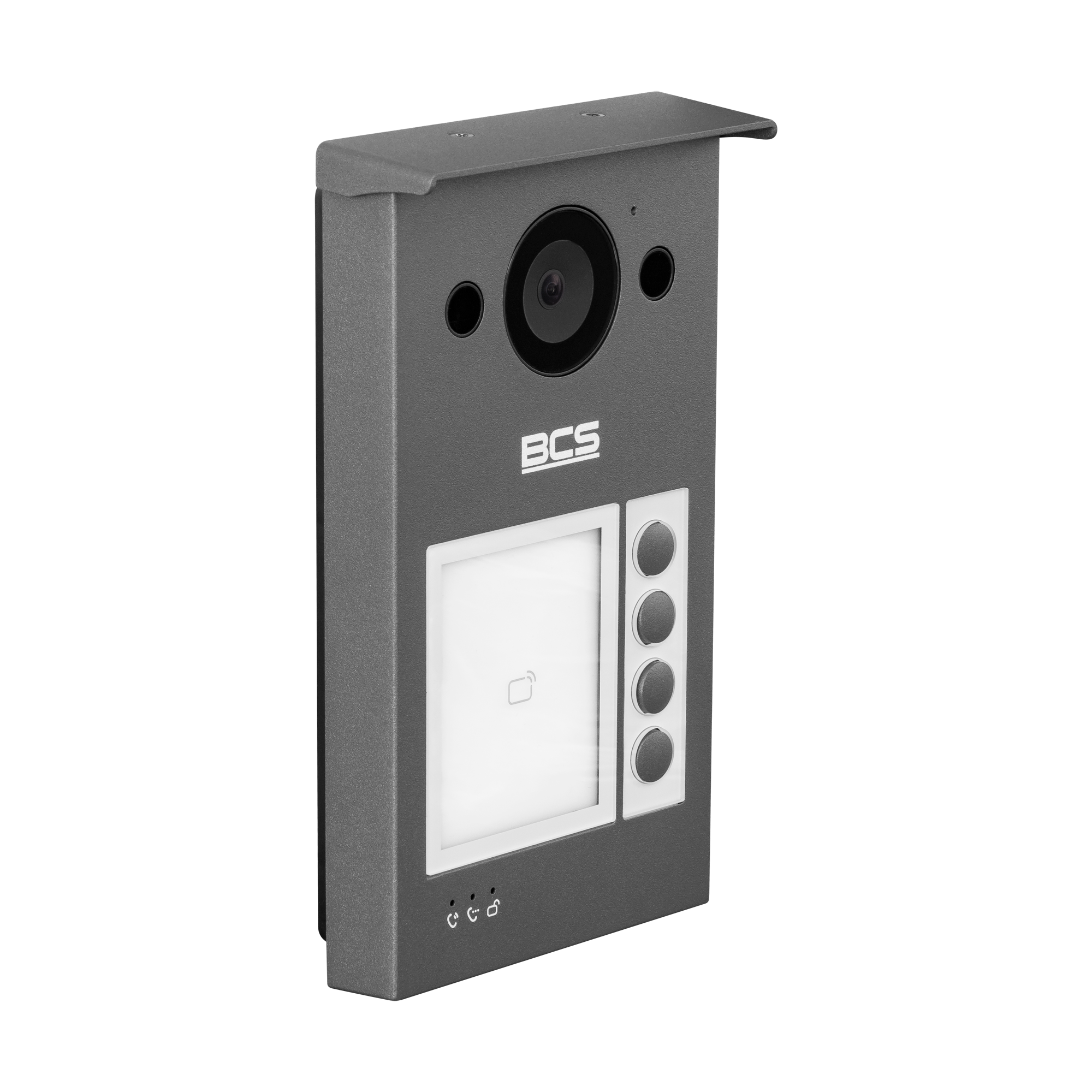

BCS-PANx401G-2
473,55 € gross
72 In StockDual-system IP/2-wire outdoor panel for one, two or four users (as required). Surface-mounted. Built-in rain visor, status LEDs and a proximity card reader.
72 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Number of supported places | 1,2,4 |
|---|---|
| Product | BCS-PANX401G-2 |
| Alarm out | Yes, for future use |
| Camera horizontal angle of view | 125 |
| System type | IP, 2-wire IP |
| Number of door opening codes | not applicable |
| Working environment (temperature) | -40°C ~ +60°C |
| Camera sensor | 1/2.8'' |
| Device type | External Panel |
| Call buttons | 1 |
| Proximity reader | Yes, Mifare 13.56MHz |
| Keyboard | No |
| Finger print reader | No |
| Display | No |
| Information leds | Yes |
| Camera resolution | Strumień główny: max 720p; strumień dodatkowy max 1080p |
| Camera video compression | H.264, H.265 |
| Onvif compatibility | Yes |
| Camera lens | bd |
| Lens regulation (left/right) | No |
| Camera illumination | IR |
| Ethernet | Built-in |
| Panel power supply type | 48V DC / PoE(802.3at/af/passive) |
| Network connection | LAN, magistrala 2-wire |
| RS485 output | Tak, do podłączenia modułu BCS-MODK-III |
| 12V power supply output | No |
| Wiegand output | No |
| Panel color | Graphite |
| Panel dimensions (mm) | 188.1×107.2×31.8 |
| Panel weight (g) | 570 |
| Mounting type | Surface mount |
| Mobile app compatibility | Yes, videomonitor required |
| Material | Aluminum alloy |
| IP class | IP65 |
| IK class | IK08 |
| Max power consumption | 8W |
